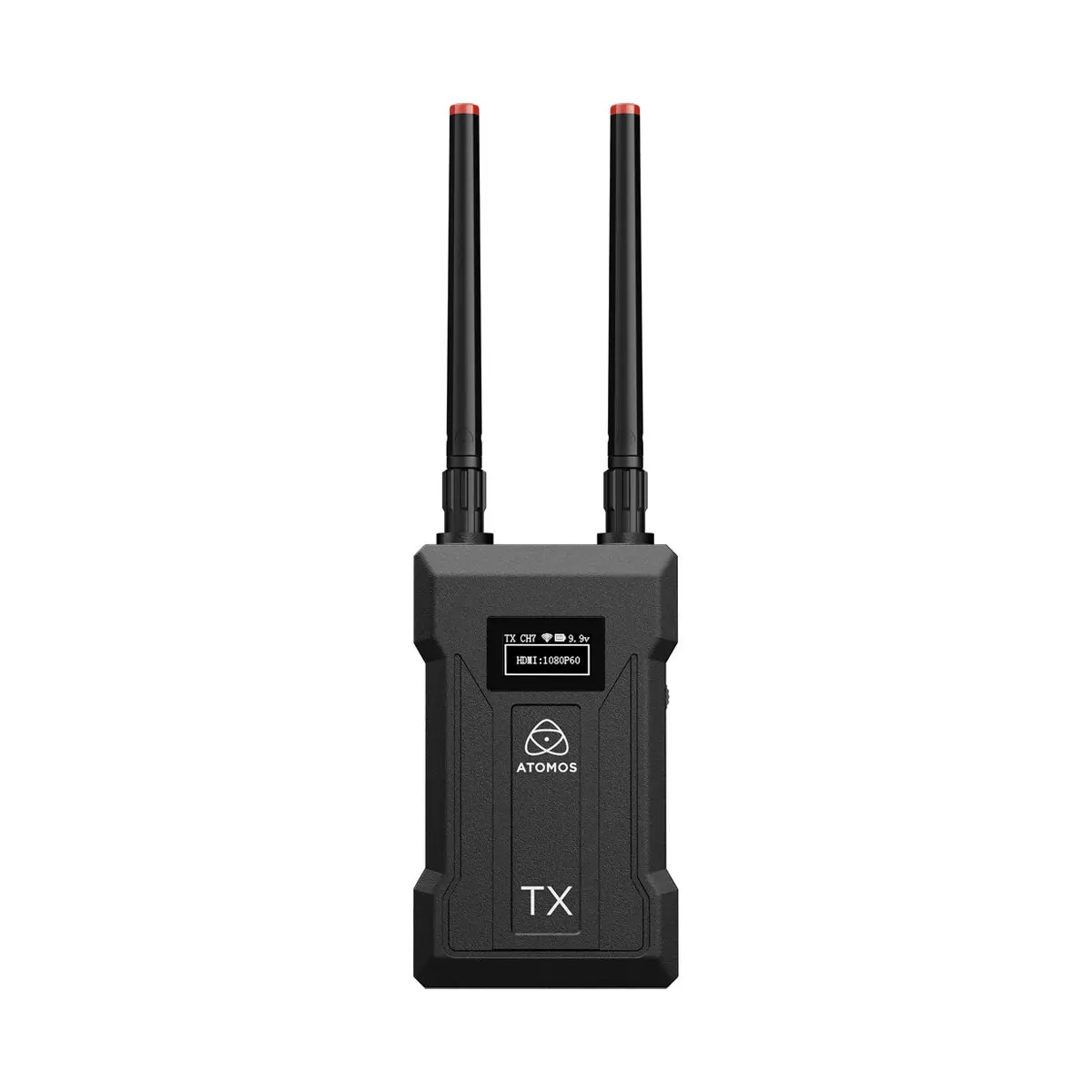

Atomos TX 4K/HD Wireless Video Transmitter
R8,895
Includes VAT | Shipping options at checkout
Stock Available
A professional Atomos 4K/HD wireless video transmitter delivering reliable, low-latency HDMI/SDI signal transmission for filmmakers and live production setups.
- Compact and portable
- Transmits up to 4Kp30 from HDMI input / 1080p60 from SDI input
- 5GHz Wi-Fi transmission, strong anti-interference
- Powered by NP-F battery, USB-C or DC input (9–16V)
- Transmit to iOS or Android phone
- Supports up to 4 receivers

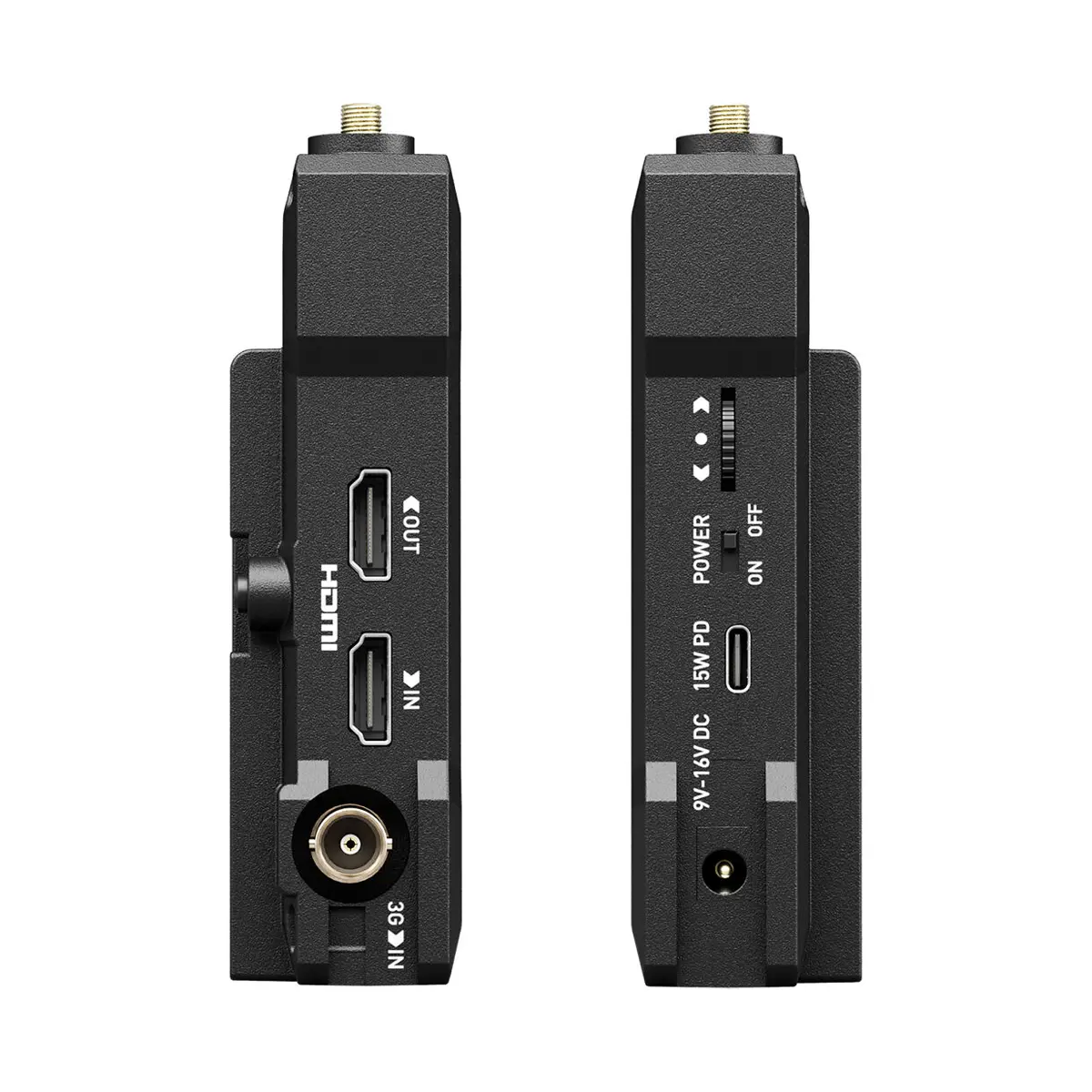

- Transmitter supports HDMI/SDI input and HDMI loop out
Stock Available
PRICE MATCH REQUEST
Atomos TX 4K/HD Wireless Video Transmitter
Atomos TX-RX is a powerful 4K/HD wireless video transmitter (TX) and receiver (RX) system designed to streamline video monitoring and production workflows – on set, on location, or in the studio.
Engineered for creative professionals who need mobility, flexibility, and ease of use without compromise, the Atomos TX-RX delivers low-latency HD-SDI and stunning 4K HDMI video transmission for wireless on-set monitoring over long distances, ensuring seamless video monitoring from camera to monitor, monitor to monitor, and more.
Whether you’re set up on a tripod or moving between handheld rigs or gimbals, TX-RX gives crews the freedom to change camera angles, reposition gear, or even go completely handheld without having to disconnect director or client monitors – because everything stays wirelessly connected.
Atomos TX 4K/HD Wireless Video Transmitter Specifications
| Physical | |
|---|---|
| Dimensions (W x H x D mm) | 42mm x 67mm x 120mm |
| Weight | 231gms |
| Mount points | 1 x 1/4-inch 20 screw mount on bottom of device |
| Environmental | |
| Ambient operating temperature | Up to 50 degrees Celsius |
| Construction & Control | |
| Body | Aluminium alloy |
| Rotary control | For channel selection |
| Power switch | On/off |
| Power | |
| Input voltage | 9-16V |
| Operating power | 4W |
| Compatible batteries | NP-F970/750/550 battery (not included) |
| Built in battery | No |
| Display | |
| Resolution | 128 x 64 pixels |
| Size | 21.8mm x 10.8mm |
| Video Input/Output | |
| TX | 1 x 3G-SDI, 1 x HDMI input and 1 x HDMI loop-through |
| Wi-Fi | |
| Frequency | 5GHz |
| Channels | 9 (CH0-CH08) |
| Latency | 60ms |
| Transmission distance (line of sight) | Up to 300m (985ft) |
| Audio In/Out | |
| Audio Format | PCM dual channel |
| Resolution & Frame Rates Supported | |
| HDMI | 4K30, 4K25, 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50 |
| 3G-SDI | 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50 |
| Box Contents | |
| TX | Wireless video transmitter, USB A-C 2.0 cable (1m), 2 x Wi-Fi antenna, 5 x antenna tips, 1/4-inch screw mount, Quick Start Guide |
| Warranty | |
| Standard | 1 year. Extended to 2 years on product registration. |
